SB-2263MG Servo 10Kg 0,076s Brushless Jan Edition Low Profile

SB-2263MG Servo 10Kg 0,076s Brushless Jan Edition Low Profile

99,50 €
sis. 24 % ALV
Voimaservo
Saatavuus 1 kpl
Toimitus 1-2 arkipäivää

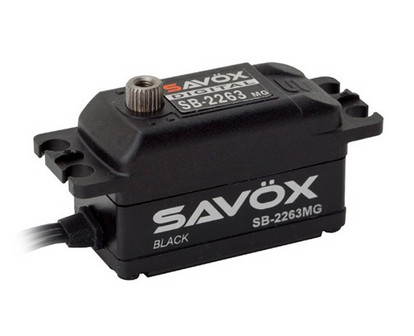

SAVÖX SB-2263MGJE - Brushless Metal-Geared High Speed Low-Profile Servo

The SB-2263MGBE is a limited edition "Jan Ratheisky" signature high speed, brushless, low profile servo suitable for RC cars and boats where you want/need a fast and low servo that is not High Voltage. The "JE" version has a cool and sleek all black look with a Jan Ratheisky RETS 2016 champion signature etching.


Features:

  • Metal gear train ensures durability under harsh situations
  • Cool black design
  • Ideal for 1/10 on road cars requiring a high speed servo

Specifications:

  • Voltage range: 4.8-6.6V
  • Torque @ 4.8V: 8kg/cm
  • Torque @ 6V: 10kg/cm
  • Speed @ 4.8V: 0.10 sec/60 deg
  • Speed @ 6V: 0.076 sec/60 deg
  • Dimensions L x W x H: 40.8 x 20.2 x 25.4mm
  • Weight: 48g

Technical Details:

  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @4.8V, 220mA @6.0V
  • Stall Current (at locked): 2900mA @4.8 V, 3700mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 50 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
Arvostellaksesi tuotteen sinun pitää kirjautua sisään.
Mallinumero: SB-2263MG
